Description
- Quantity: 1 pcs
- Is Electric: No battery
- Wheelbase: Screws
- Size: 52.81 x 33.43 mm/2.1 x 1.3 inch
- Technical parameters: value 2
- Model Number: 2 Axis Gimbal
- For Vehicle Type: Airplanes
- Tool Supplies: Cutting
- Four-wheel Drive Attributes: Shell/Chassis/Wing/Head
- Remote Control Peripherals/Devices: Servos
- Upgrade Parts/Accessories: Frame
- RC Parts & Accs: Landing Gear
- Material: Metal
- Brand Name: TZT
- Use: Vehicles & Remote Control Toys
- Origin: Mainland China
- Recommend Age: 14+y
- S: 86616
- Servo working voltage: DC4.8-5V
- Servo model: MG90S (full metal gears)
- G.W.: 0.2kg/0.4lb

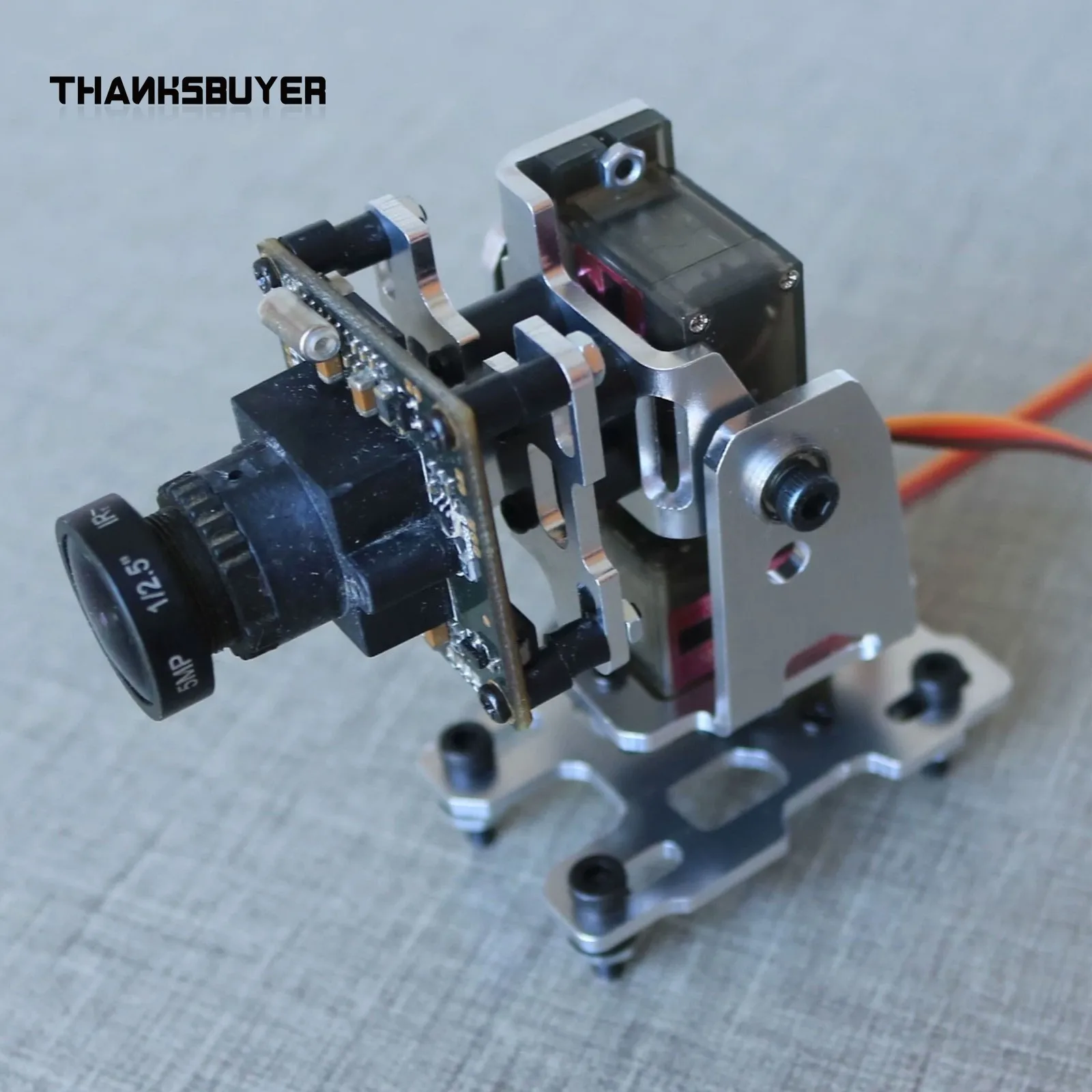

2 Axis Gimbal FPV Gimbal Drone Gimbal with Two Metal Gear Servos for Model Aeroplane Cameras
Features:
– 2 axis gimbal for drone cameras
– The gimbal bracket with two metal gear servos
– Aluminum alloy bracket
– Adjustable installation holes for cameras with hole spacing of (24-33) mm x (16-28)mm, i.e. (0.9-1.3) inch x (0.6-1.1) inch
– Suitable for cameras of model aeroplanes
Parameters:
– Base size: 52.81 x 33.43 mm/2.1 x 1.3 inch
– Hole spacing for camera mounting: adjustable length and width (24-33) mm x (16-28)mm, i.e. (0.9-1.3) inch x (0.6-1.1) inch
– Mechanism and material: lightweight aluminum alloy
– Weight (including servos, without camera) about: 76g/0.2lb
– Servo model: MG90S (full metal gears)
– Servo pin definitions: Yellow: PWM IN; Red: 5V+; Brown: 5V-
– Servo working voltage: DC4.8-5V
(without Servo）Package Included:
– 1 x Gimbal
Packaging Details:
– G.W.: 0.15kg/0.3lb
Note:
– Servos and camera are not included in the package.
– Please not change the angle of two servos with excessive force, because too much force is easy to damage the servos, resulting in the failure of servo gears.
————————————————————————————————————————–
with two servos Package Included:
– 1 x Gimbal with two servos
Packaging Details:
– G.W.: 0.2kg/0.4lb
Note:
– Camera is not included in the package.
– Please not change the angle of two servos with excessive force, because too much force is easy to damage the servos, resulting in the failure of servo gears.
