Description
- Hign-concerned Chemical: None
- Is Electric: No battery
- Quantity: 1 pcs
- Size: Gimbal FPV
- Technical parameters: value 2
- Model Number: 3-Axis Gimbal
- For Vehicle Type: Airplanes
- Tool Supplies: Battery
- Material: Composite Material
- Brand Name: MKJFE
- Origin: Mainland China
- Recommend Age: 14+y
- Use: Vehicles & Remote Control Toys
- Size: Gimbal FPV
- Technical parameters: Value 2
- Model Number: 3-Axis Gimbal
- For Vehicle Type: Airplanes
- Tool Supplies: Battery
- Four-wheel Drive Attributes: Gimbal Camera Mount
- Remote Control Peripherals/Devices: Storm32 Controller
- Upgrade Parts/Accessories: Gimbal Camera Mount
- RC Parts & Accs: Gimbal Camera Mount
- Material: Composite Material
Please note that the camera is not included.

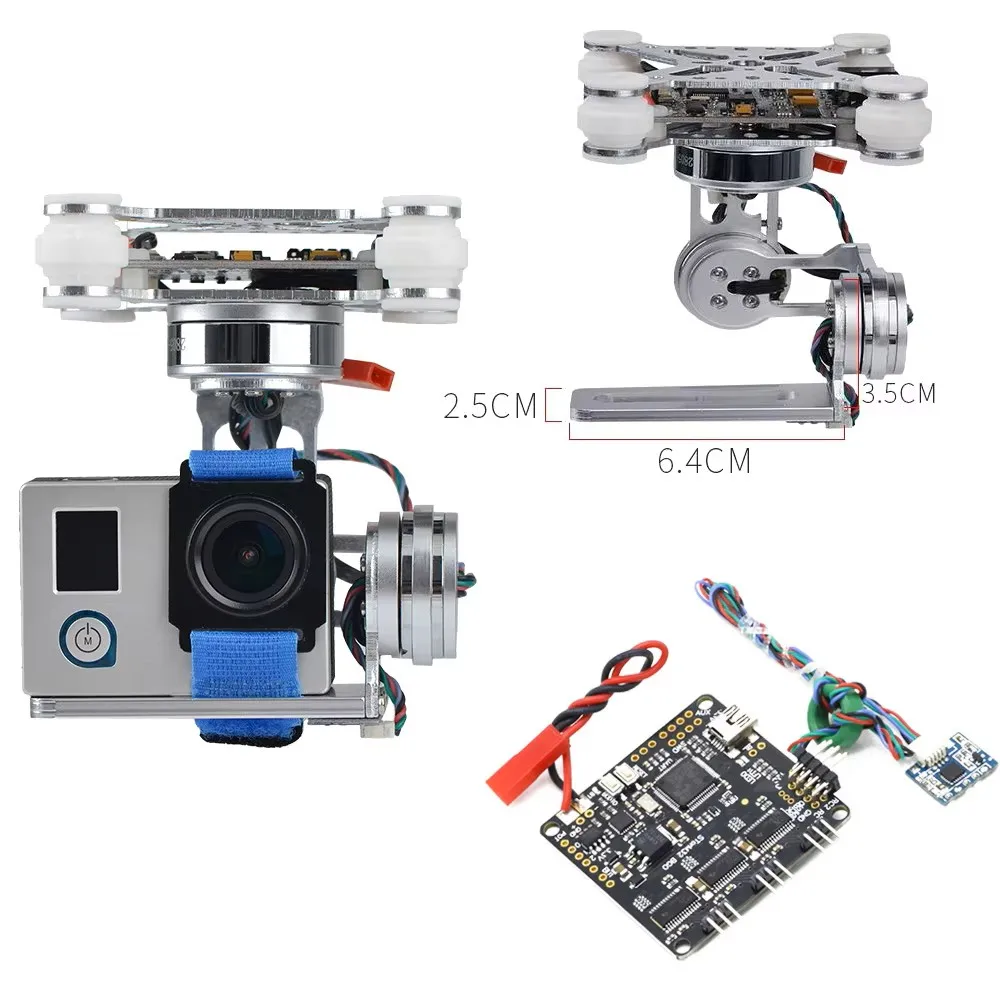

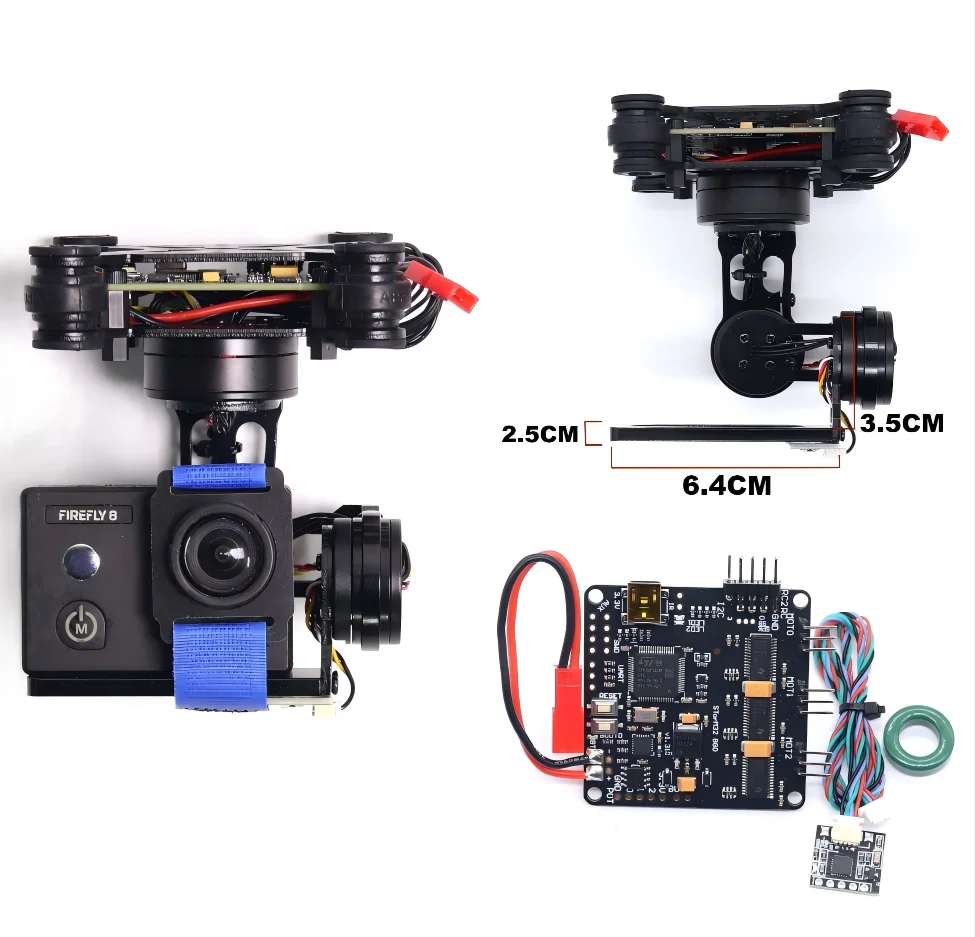

3-Axis Brushless Gimbal Camera Mount & 32bit Storm32 Controller Broad

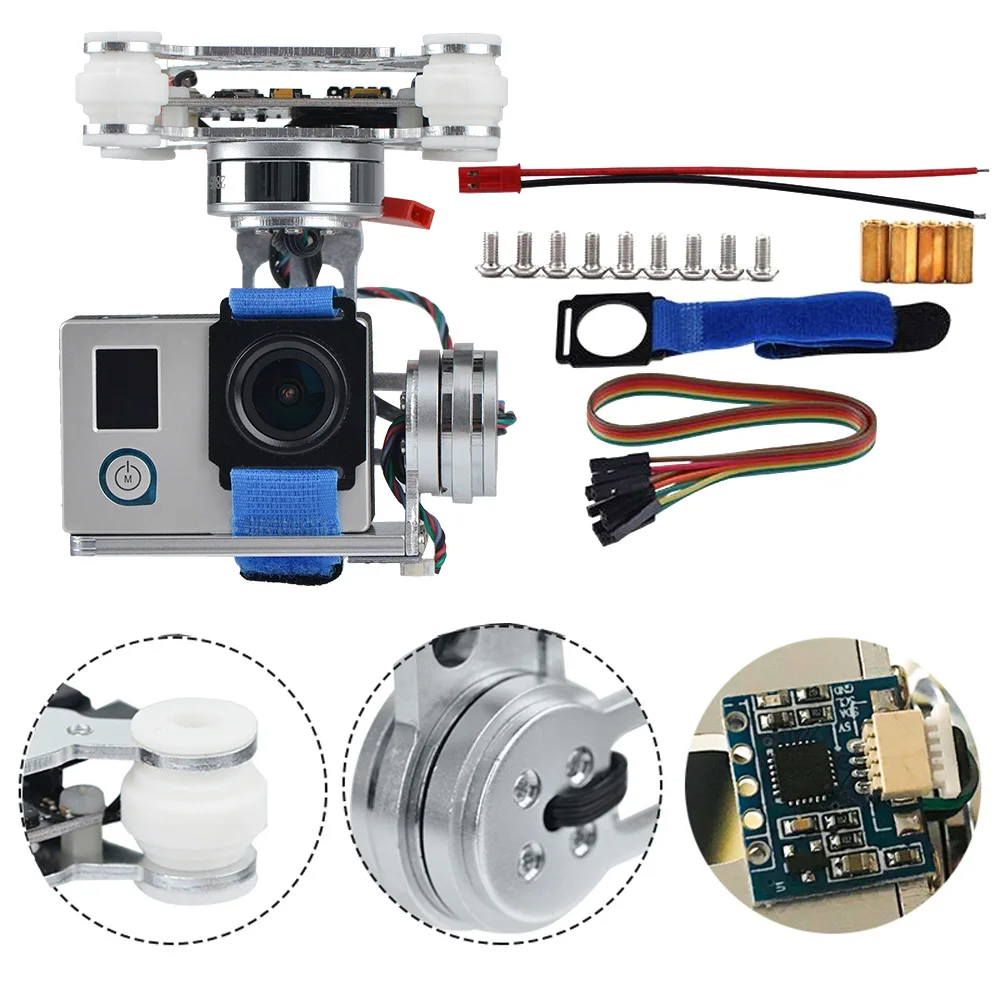

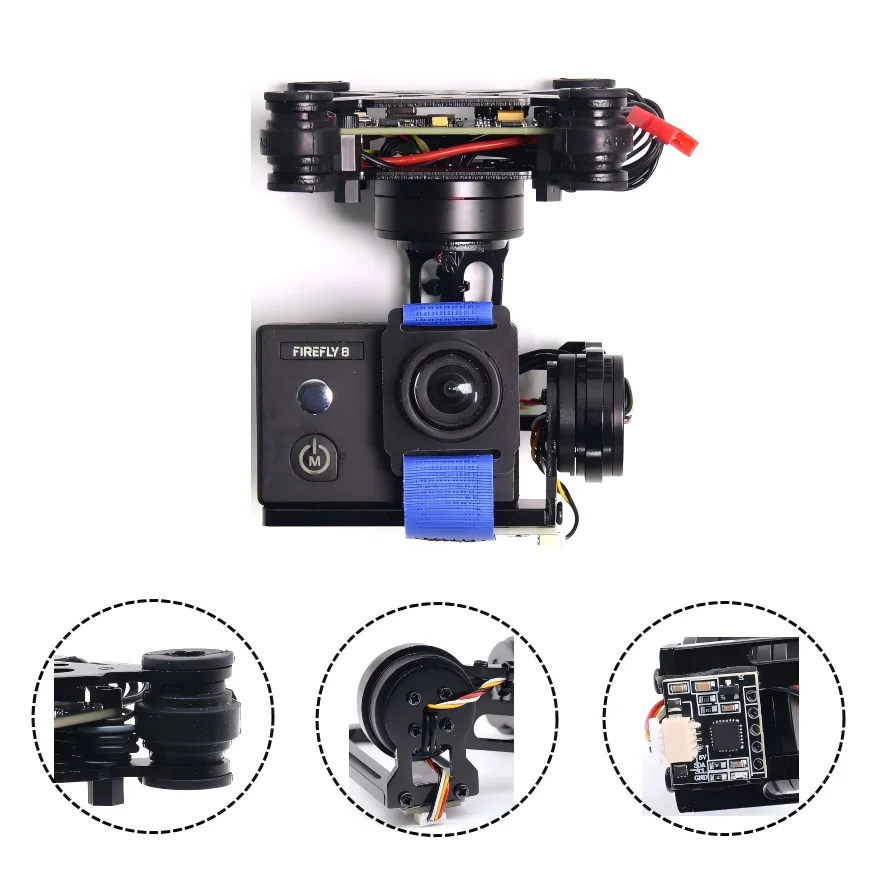

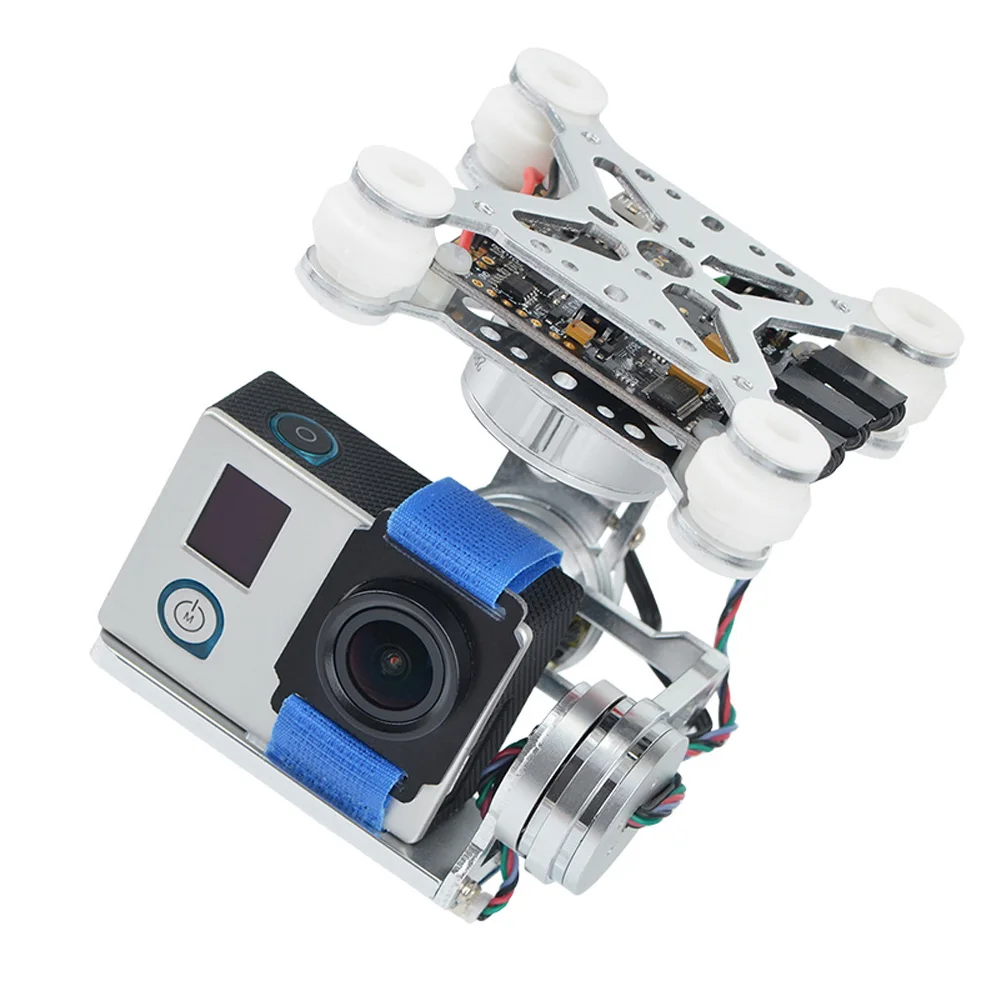

3-Axis Brushless Gimbal Mount:
Description:
– Simple structure and light weight,CNC aluminum alloy structure
– Brushless motor direct drive
– With anti-vibration rubber balls,easy to adjust
– Compatible with Gopro 4 3,2,1
– With 3pcs 2804 160t motor
– With 32bit Storm32 firmware gimbal controller, sensor
– With motor protector which can help heat dissipation
Specification:
– Power supply: 9-15V(3-4S)
– Drive current: Max.1.5A
– Height: 11cm
– Color: White
2804 100KV Brushless Gimbal Motor
Model :2804 100KV
Weight:41.5g
Motor Diamension:34mm*hgt15mm
Stator Diameter:DIa 28mm*hgt 4mm
Copper Wire(OD):0.19mm
Configuration:12N14P
Resistance:11.2ohms
Base center pitch:16mm 19mm
Pre-wound: with 100 turns hollow shaft
Camera range(Torque):200g-400g
Test Voltage:11.1V
Max Voltage:14.8v
Test Current:0.0099A
Max Current:5A
Test Rotational Speed:1637 rpm
Max Rotational Speed:2180rpm

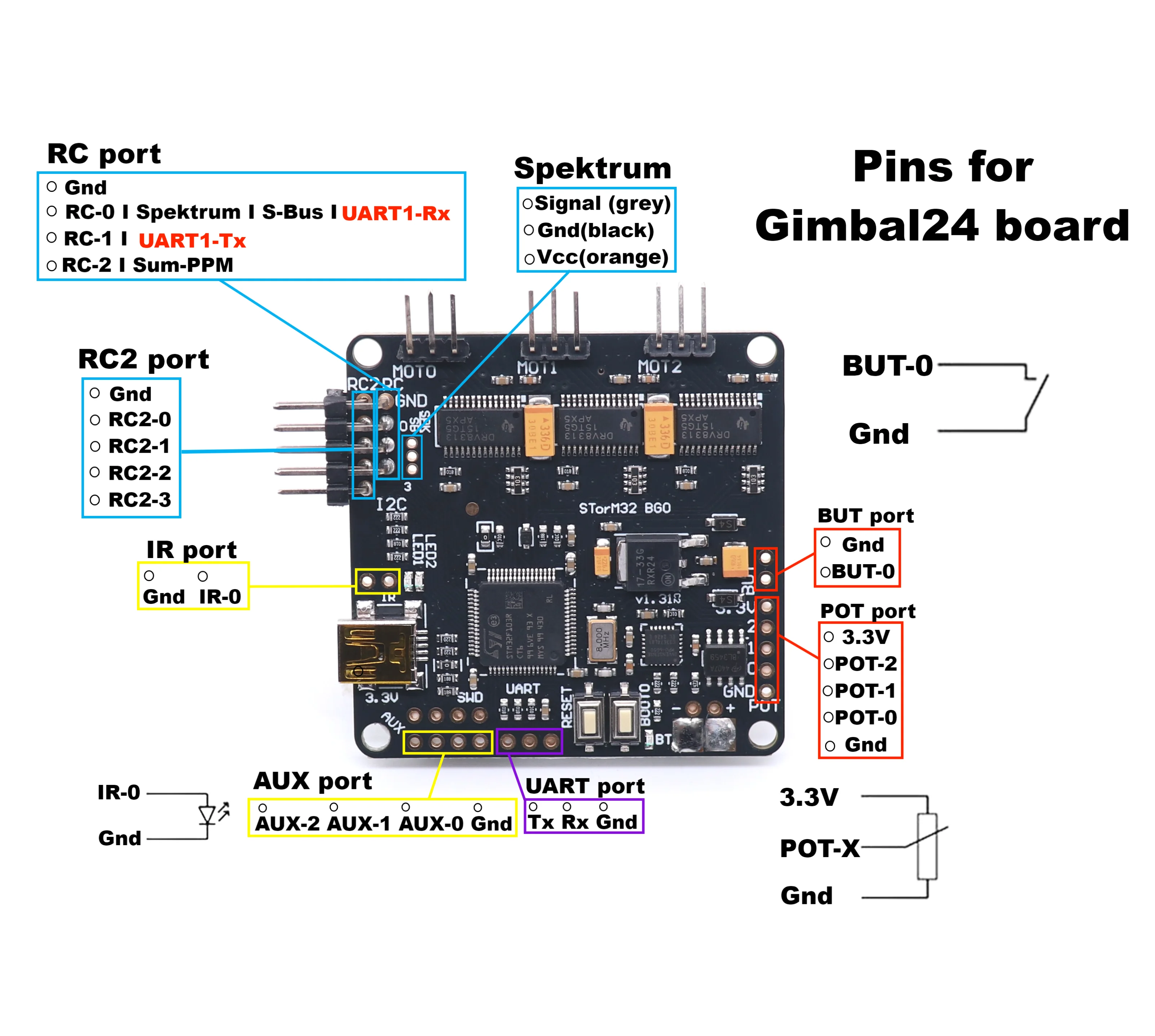

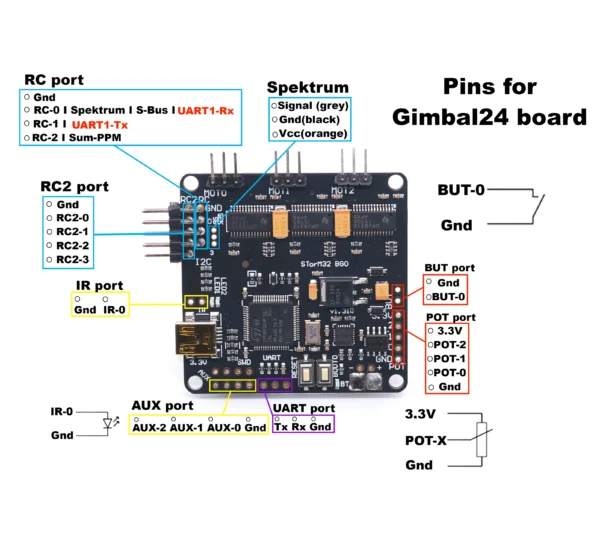

Storm32 BGC 32Bit 3-Axis Gimbal Controller:
-M0T0:Connection Pitch(Pitch) Motor
-M0T1:Connection Roll(Roll) Motor
-M0T2:Connection YAW(Direction) Motor
-RC Port:Remont control port.during normal operation,RCO-2 can be accessed by the 3-way PWM singal as a control used when updating the firmware RCO=UAER-RX RC1=UART-TX,SPEKRUM,S-BUS signal is connected RC-O
-RC2 Port:RC20-3 can connect up to four-way Pwm signal as a control use.
-I2C Port:Then the camera’s sensor
-I2C Port #2:I2C board on the back of 2# connect external sensors using alternative imu on the motherboard.
-IR Port:Contact infrared light-emitting diode,you can remote control the camera at sony.
-USB Port:0.46 firmare can be used later usb transfer parameters directly connected to the computer.
– Processor: STM32F103RC at 72Mhz
– Motor driver: DRV8313 with short circuit, overheat protection
– Onboard gyro and acceleration sensor MPU6050
– IR LED Interface
– Futaba S-BUS
– Spektrum satellite port
– 7CH PWM/Sum-PPM input/output
– Each axis could connect analog joystick
– With I2C port, could use external 6050 to replace onboard sensor
– 3* AUX port
Specifications:
– Power supply: 9-18V(3-4S)
– Drive current: Max.1.5A
– Dimension: 5-5cm, M3 screw hole, 45mm pitch
– Weight: 10g
