HotRC 3-Axis Brushless Gimbal Camera Mount & 32bit Storm32 Controller Broad For Gopro3/Gopro4/SJ4000/Xiaomi FPV Camera Drone

3-Axis Brushless Gimbal Camera Mount & 32bit Storm32 Controller Broad

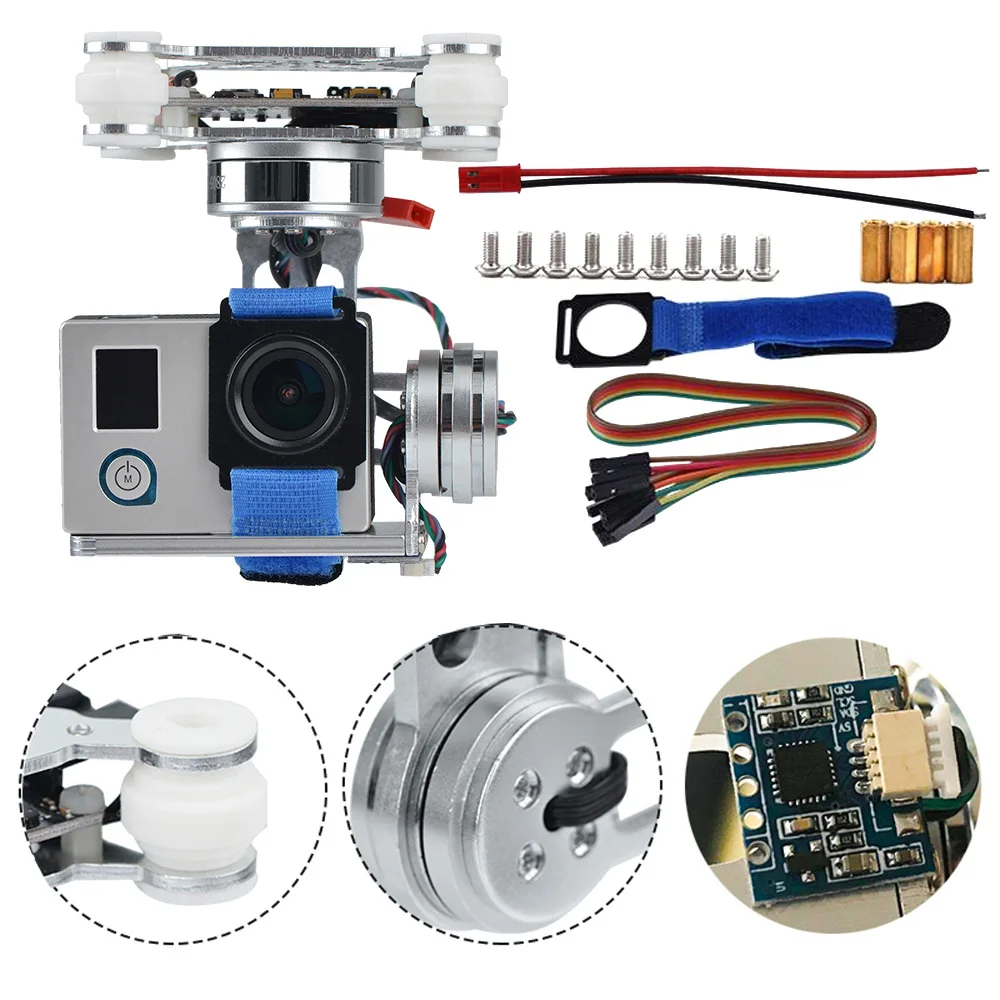

3-Axis Brushless Gimbal Mount:

Description:
– Simple structure and light weight,CNC aluminum alloy structure
– Brushless motor direct drive

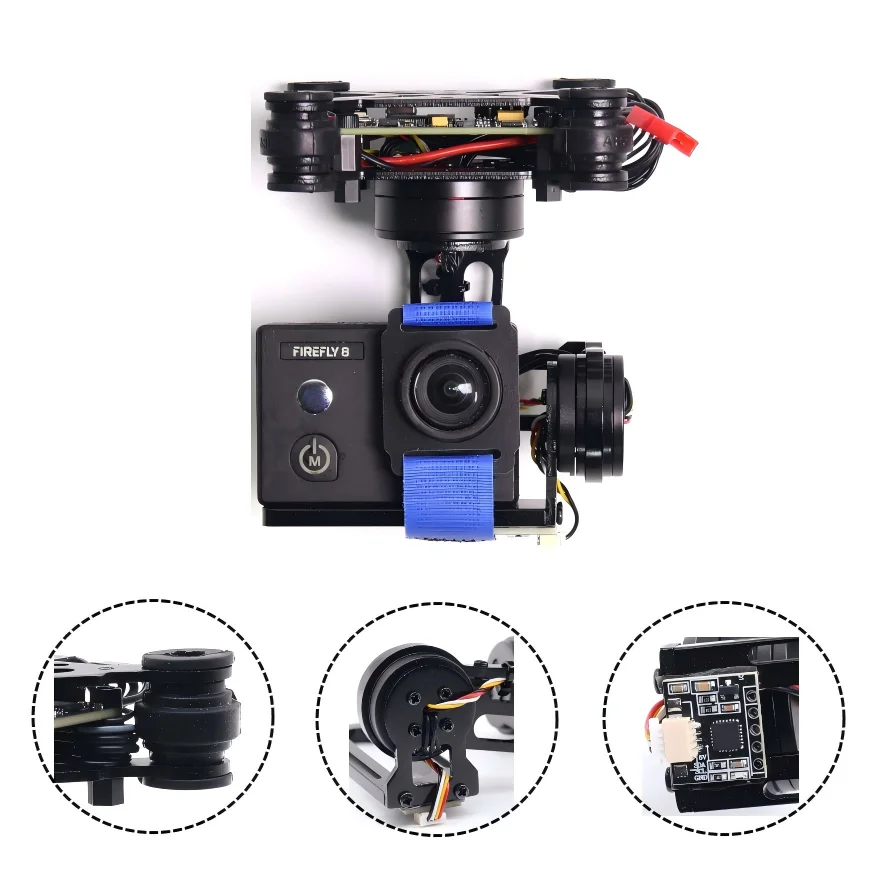

– With anti-vibration rubber balls,easy to adjust
– Compatible with Gopro 4 3,2,1
– With 3pcs 2804 160t motor
– With 32bit Storm32 firmware gimbal controller, sensor
– With motor protector which can help heat dissipation

Specification:
– Power supply: 9-15V(3-4S)
– Drive current: Max.1.5A

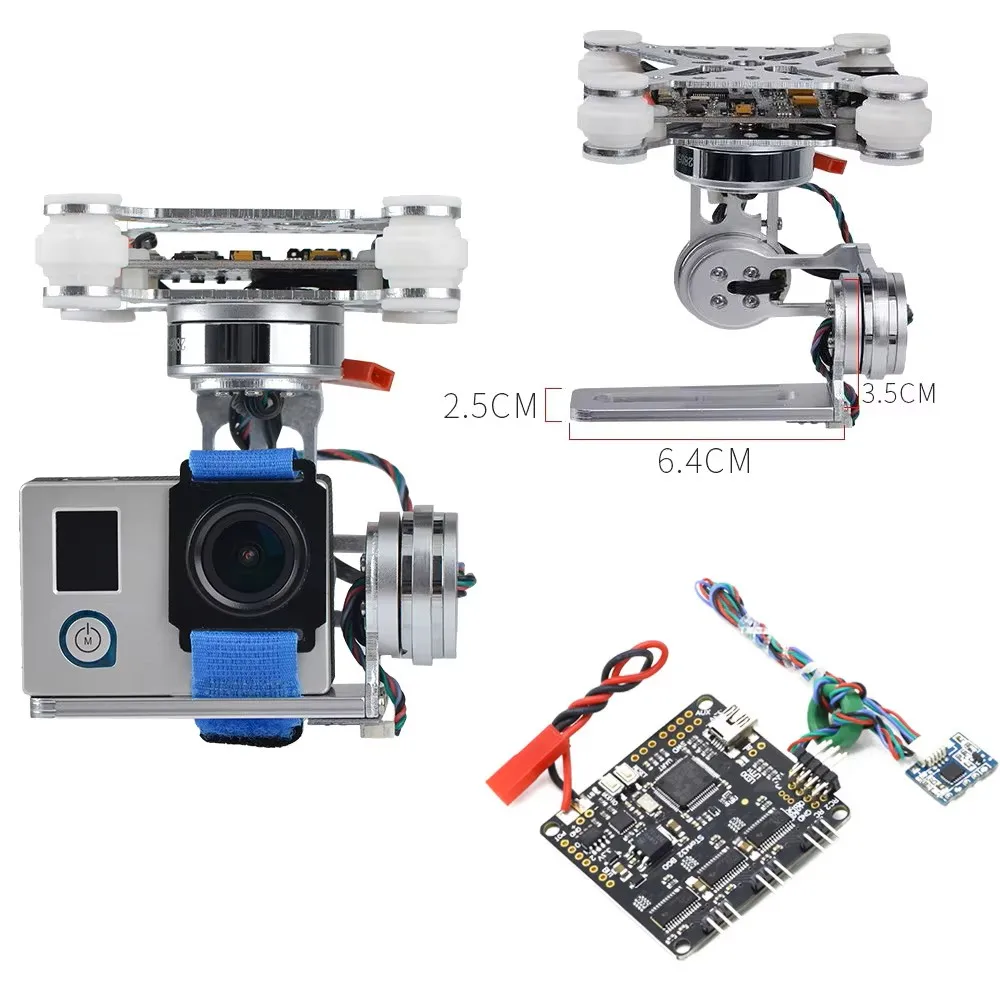

– Height: 11cm
– Color: White

-M0T0:Connection Pitch(Pitch) Motor
-M0T1:Connection Roll(Roll) Motor
-M0T2:Connection YAW(Direction) Motor
-RC Port:Remont control port.during normal operation,RCO-2 can be accessed by the 3-way PWM singal as a control used when updating the firmware RCO=UAER-RX RC1=UART-TX,SPEKRUM,S-BUS signal is connected RC-O
-RC2 Port:RC20-3 can connect up to four-way Pwm signal as a control use.
-I2C Port:Then the camera’s sensor
-I2C Port #2:I2C board on the back of 2# connect external sensors using alternative imu on the motherboard.
-IR Port:Contact infrared light-emitting diode,you can remote control the camera at sony.
-USB Port:0.46 firmare can be used later usb transfer parameters directly connected to the computer.

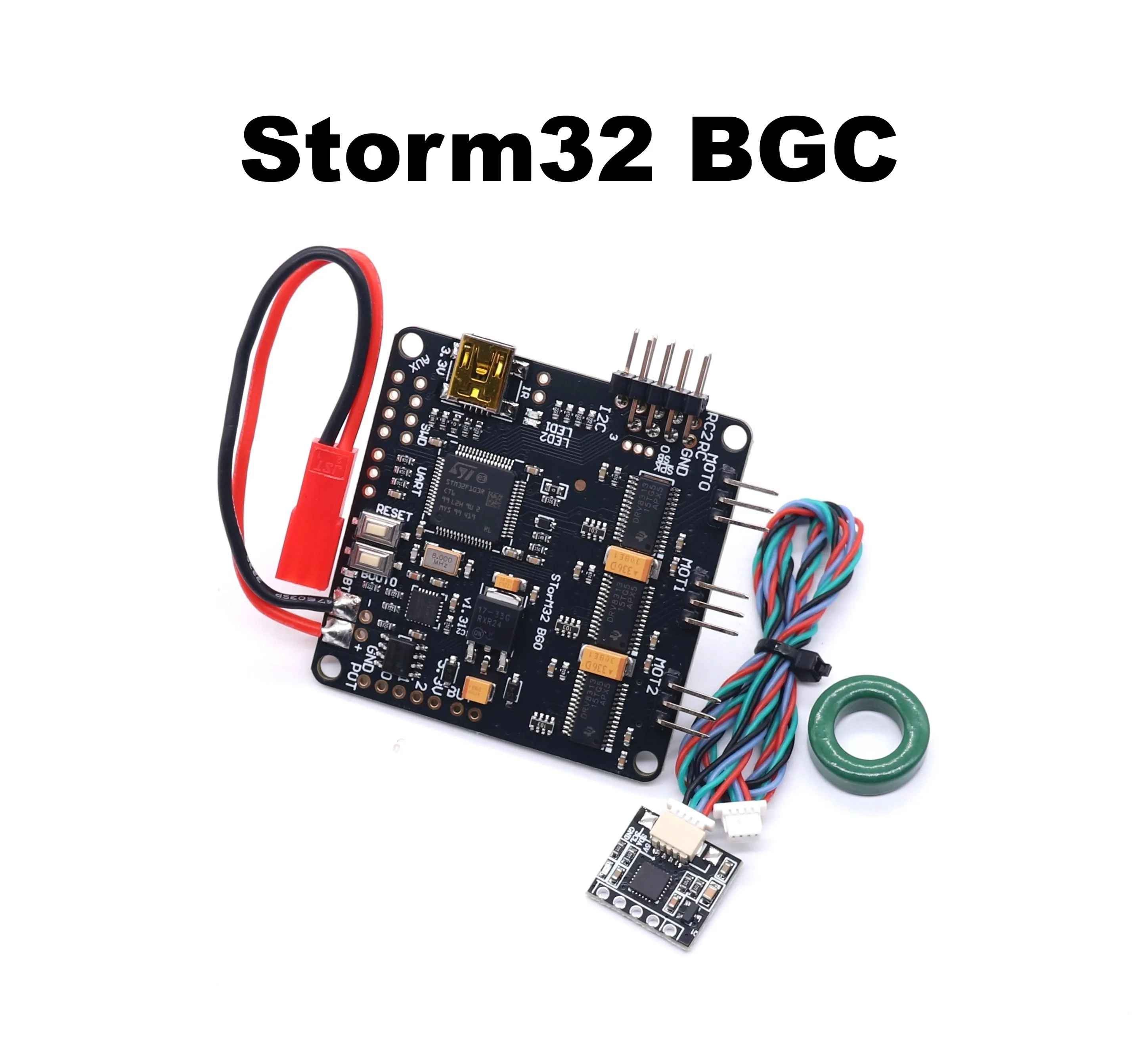

– Processor: STM32F103RC at 72Mhz
– Motor driver: DRV8313 with short circuit, overheat protection
– Onboard gyro and acceleration sensor MPU6050
– IR LED Interface
– Futaba S-BUS
– Spektrum satellite port
– 7CH PWM/Sum-PPM input/output
– Each axis could connect analog joystick
– With I2C port, could use external 6050 to replace onboard sensor
– 3* AUX port

Specifications:
– Power supply: 9-18V(3-4S)
– Drive current: Max.1.5A
– Dimension: 5-5cm, M3 screw hole, 45mm pitch
– Weight: 10g
